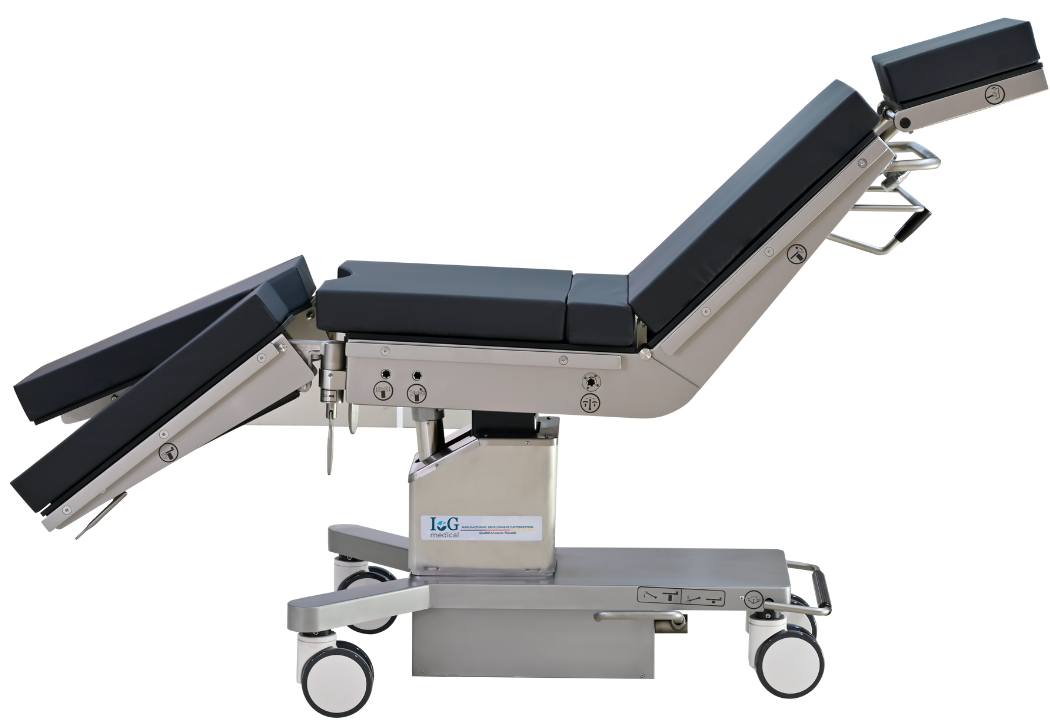

IG Operating Table___ TAB-225
Surgical tables
Our manual surgical tables are economic models which minimize essential maintenance and cost efforts. Nevertheless, they offer reasonable structures and strong functions to fulfill medical staff requirements.
-
Enables a wide range of configurations for general and special surgery
-
Accommodates larger patients, and offers excellent access to the operated site thanks to its design and adjustment options
-
Heavy-duty casters with low noise and high mobility
-
Reliable hydraulic systems for a steady and swift lifting up/down
-
Dual-layer slow-elastic memory foam pad
-
More comfort and balanced stress
-
Orthopedic tractor and skull clamp is optional
-
Table board is radiolucent with the X-ray film cassette
1
-
High-quality stainless steel body: compact and durable
-
Integrated kidney elevator
-
Slow-elastic memory foam: reduces stress and increases comfort for the patient
2
| Table Top | ≥2040x510mm |
|---|---|
| Back Board | ≥570x510mm - ≥570x510mm |
| Leg Board | ≥630x245mm |
| Table Height | 680mm±20mm |
| Height Adjustment Range | △H≥250mm |
| Trendelenburg und Rev.Trendelenburg | ≥25° |
| Lateral Tilt | 20°±2° |
| Back Board | ≥570x510mm - ≥570x510mm |
| Head Rest | Up≥50° Down≥75° |
| Leg Board (Separating Angle) | Down≥90° Up≥10° Out≥90° |
| Kidney Elevator | ≥110mm |
| load capacity | up to 200Kg |
