IG Electrocardiograph EKGseries3CH
Electrocardiographs

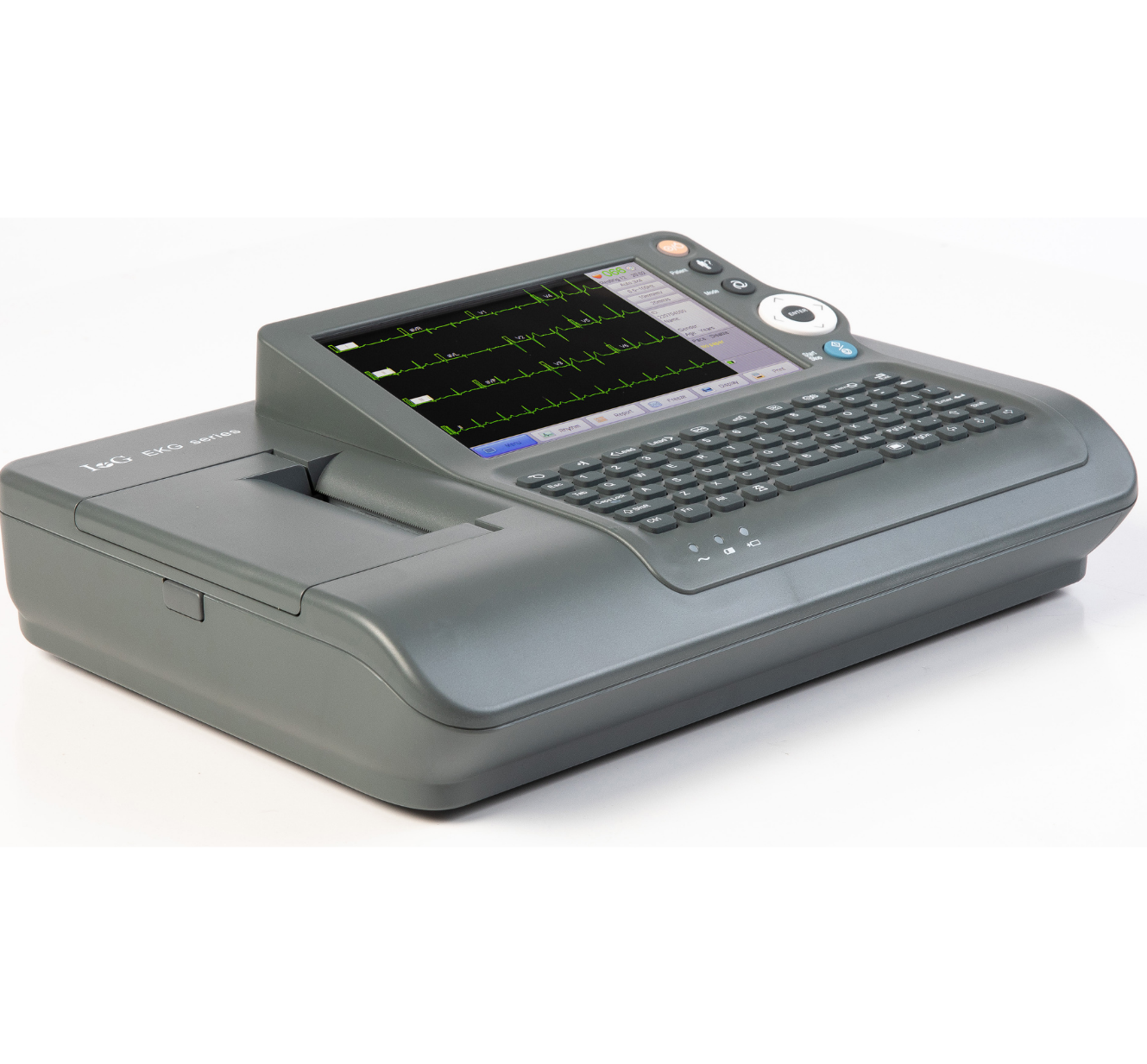

Our 3-Channel ECG from our ECG Series comes with an ergonomic design, light in weight, and is easy to use in hospitals, doctor´s offices, and even ambulance cars. it's functions include diagnostics applications to check cardiac abnormalities, detect chest pain with acute myocardial ischemia and myocardial infarction and also evaluate the patient's arrhythmias.
IG Medical 3-Channel ECG Suitable for adults, pediatrics, and neonates.
1
- 7" LCD Screen
- Very high sensitivity and specificity of QRS detection
- Unique ECG data acquisition module
- Four sensitivity levels
- Independent lead wires
- Data format: pdf, jpeg, dicom, xml
- Alphanumeric keyboard
- USB / SD card / internal storage
- Built-in LAN and WiFi-option
- Auto- and manual recording
- Long term recording up to 300 sec
- Onscreen operation guide
- Rechargeable battery for up to 3h working time
- Analysis interpretation by Minnesota code with CSE & AHA database support
2
| Patient cable | Standard 12-lead cable with defibration-proof function |
|---|---|
| Lead | Standard 12-leads simultaneous acquisition |
| Display | 7“ LCD screen, whole instrument work status, time, heart rate |
| Long term recording | Record for a long term (30sec ~ 300sec) and rhythm analysis |
| Measurement parameters | Ventricular rate, PR interval, QRS time limit, QT/QTC interval, P/QRS/T axis, RV5/SV1 amplitude and RV5+SV1 amplitude |
| Filters | AC, dri and myoelectric filters |
| CMRR | > 89dB |
| Input impedance | > 50m Ω |
| Frequency response | 0.05 ~ 250Hz |
| Patient leakage current | < 10μa |
| Input circuit current | ≤ 0.1μa |
| Time constant | ≥ 3.2s |
| Sensitivity | 2.5, 5, 10, 20mm/mv |
| Paper speed | 5, 6.25, 10, 12.5, 25, 50mm/s |
| Recording paper | 80mm paper roll 80mm x 90mm x 300 P/Z fan-fold paper |
| Operation mode | Automatic, manual, rhythm |
| Calibration rates | 1mV, zeroing reset, auto-base line correction |
| DC | 14.8V rechargeable li-ion battery, 3h working time |
| Safety level | IEC class II, type CF |
| Power supply AC | 100-240V, 50/60Hz, 110 VA |
| Environment requirements | Temp.: +5°C ~ +40°C Relative humidity: ≤ 95% (no condensation) Air pressure: 86KPa ~ 106 KPa |
| Supporting various data memory | Internal memory up to 3000 files, SD card for massive data storage, External USB flash drive for easy data transmission |
