TAB Series
FlagshipTAB 300
The electrohydraulic TAB Series surgical table provides great performance due to its electric hydraulic system, strong lifting force, excellent stability, and C-arm compatible features.
View product

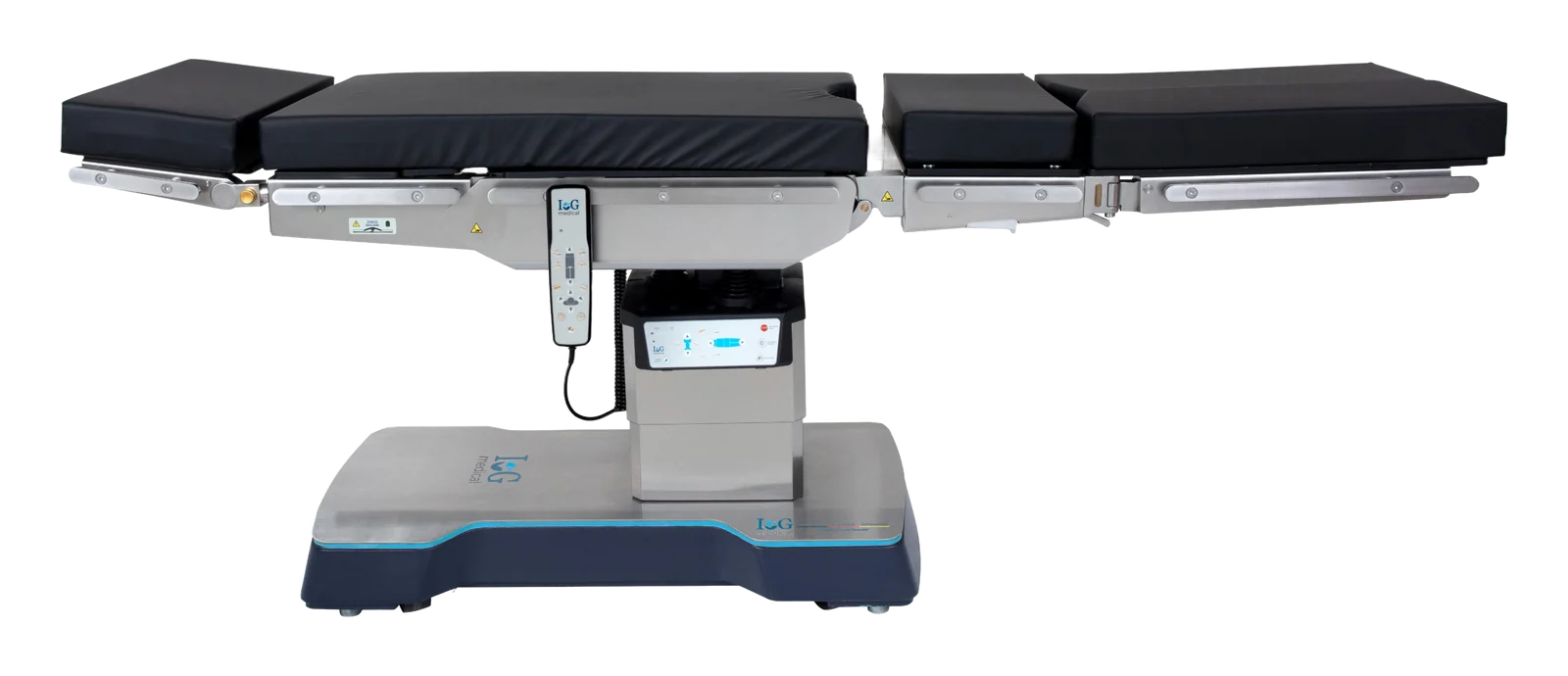

TABpro
TABpro 600
A modular operating table with a 450 mm longitudinal slide, electric leg adjustment and a loading capacity of up to 600 kg.
- Maximum loading capacity
- 600 kg
- Tabletop length
- 2150 mm
- Tabletop width, excluding side rails
- 570 mm
- Head-plate width, excluding side rails
- 550 mm
01 / 05
Overview
A modular operating table with a 450 mm longitudinal slide, electric leg adjustment and a loading capacity of up to 600 kg.
Model-specific options, accessories and adjustment ranges depend on configuration. Please refer to the TABpro 500/600 catalogue before ordering.
Key features
- Six-section modular tabletop with removable and interchangeable sections.
- 304 stainless-steel surfaces and a waterproof memory-foam mattress.
- Dual-control functionality and a collision-protection system.
- Multidirectional castors, automatic braking and emergency brake release.
- 450 mm longitudinal slide; electric leg positioning on the specified configuration.
- Optional carbon-fibre imaging board, Bluetooth LCD memory controller and Electric AutoDrive.
Technical specifications
As published by the manufacturer. Values marked “—” are not specified. Configurations vary by market; confirm with our team before ordering.
- Maximum loading capacity
- 600 kg
- Tabletop length
- 2150 mm
- Tabletop width, excluding side rails
- 570 mm
- Head-plate width, excluding side rails
- 550 mm
- Minimum tabletop height, excluding pad
- 600 mm, standard version
- Height adjustment travel
- 500 mm, standard version
- Trendelenburg / reverse Trendelenburg
- 30° / 30°
- Lateral tilt, left / right
- 20° / 20°
- Head-plate adjustment
- Up ≥60° / down ≥90°
- Back-plate adjustment
- Up 85° / down 35°
- Leg-plate adjustment
- Up 85° / down 110° electrically on the specified configuration; outward ≥90°
- Kidney bridge
- 130 mm electric elevation, optional
- Reflex / flex
- 110° / 230°
- Longitudinal slide
- 450 mm
- Imaging length with optional carbon-fibre board
- Up to 2170 mm
- Optional Bluetooth LCD controller
- Memory for up to 32 surgical-position presets
- Electric AutoDrive
- Optional
Applications
- General surgical positioning
- Orthopaedic positioning with selected accessories
- Urology and gynaecology with selected accessories
- Shoulder, spinal and neurosurgical positioning with appropriate supports
Compatible accessories
- Optional carbon-fibre imaging board
- Optional Bluetooth LCD controller with surgical position memory
- Optional Electric AutoDrive
Product video
Related products
TABpro
New GenerationTABpro 500
A modular operating table with a six-section tabletop, mechanical leg adjustment and a 500 kg maximum load stated in the catalogue.
View product
TAB Accessories
Operating Table Accessories
Positioning supports, mounting components and procedure-specific accessories for compatible operating tables.
View product
Interested in the TABpro 600?
Send us your requirements and our team will confirm the configuration, accessories and lead time for your market.
